Forging is a manufacturing process involving the shaping of metal using localized compressive forces. These forces are delivered with a power hammer or press. No other process for working metal can equal forging results in strength and toughness.
To allow easy functionality and interchangeability, flanges are designed to have standardized dimensions. Common world standards include ASA/ASME (USA), PN/DIN (European), BS10 (British/Australian), and JIS/KS (Japanese/Korean).

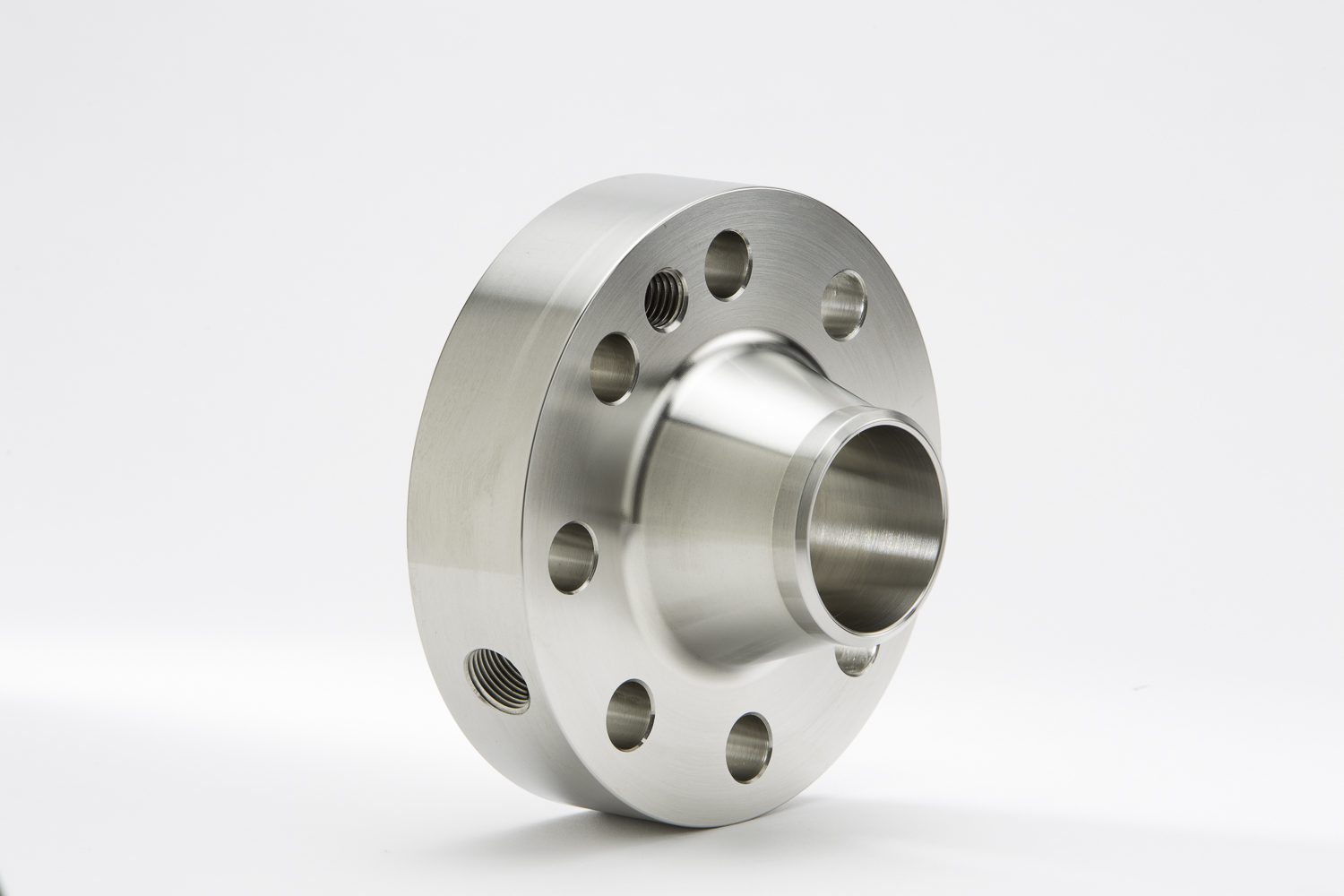

Explore IndustriesA pipe flange functions as a joining mechanism to connect a system of pipes or tubing to various equipment and valves. Typically, two flanges are joined by bolts using a gasket between them for a seal leaving the opposite ends open for welding connections (Figure one). Flanges offer numerous advantages for joining pipe in highly corrosive or maintenance prone facilities. For instance, pipe systems that need to be regularly inspected or are prone to repair can be joined with flanges for quick disassembly. Flanged connections also allow for modifications to be made to the system without needing major fabrication.
( 6" 150# WN RF Sch160 SA182 UNS S32205 )
A flange is specified by identifying the following information:
The flange size (NPS) is a designation to define the nominal pipe size of the connecting pipe. The number is not necessarily the same as the flange inside diameter. B16.5 covers ½"-24″ NPS flanges, and B16.47 covers 26″–60″ flanges.

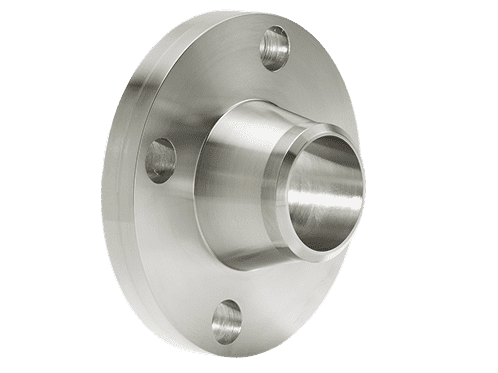

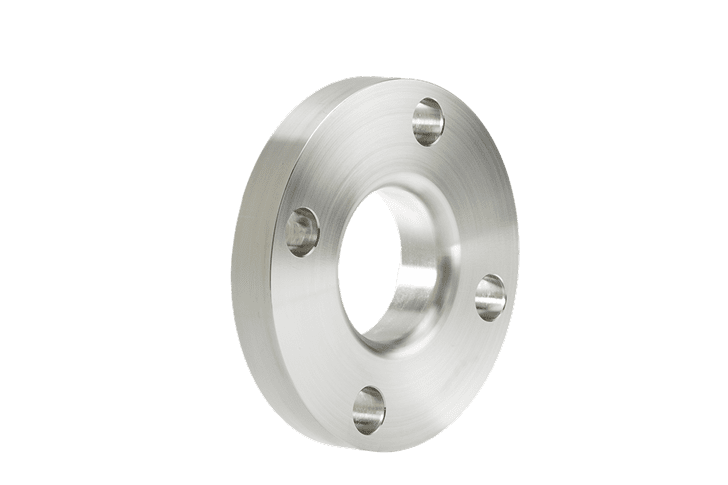

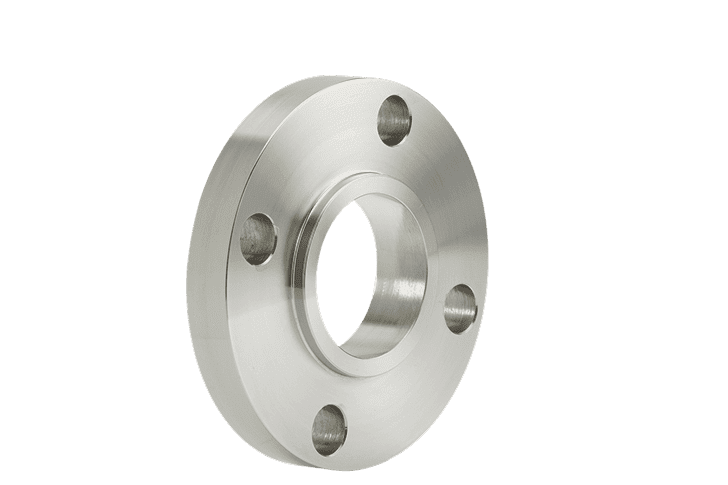

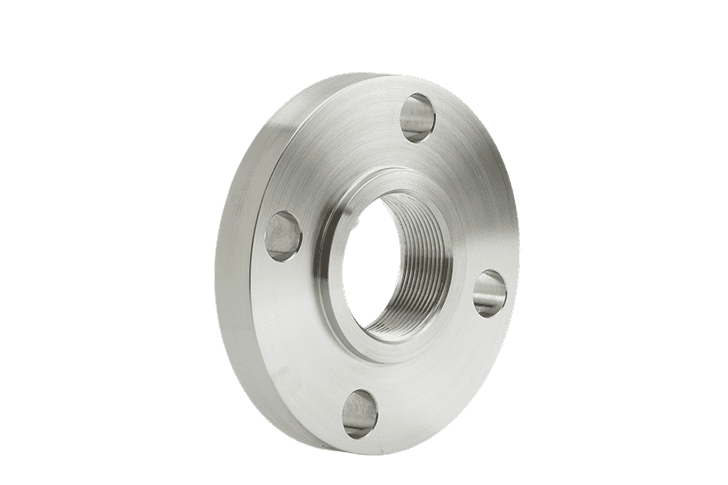

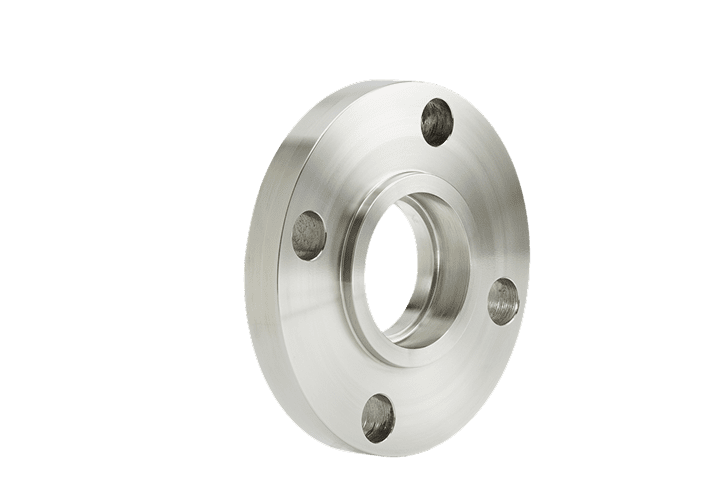

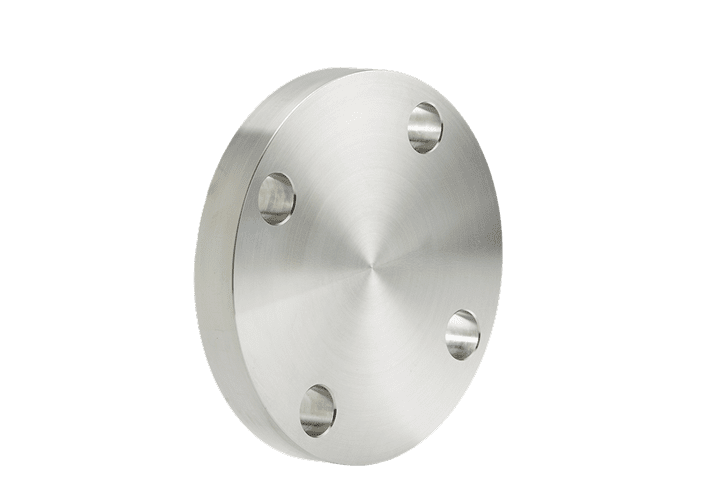

The type of flange is decided based on the application, with the most common being a Weld Neck (WN), Slip On (SO), Threaded (Thd), Socket Weld (SW) or Lap Joint (LJ). A few others include Reducing Flanges (RED), Long Weld Necks (LWN) and Stub Ends (SE).
This is only for Weld Necks, Socket Welds, Stub Ends, Orifices, and various non-standard flanges where the flange bore must meet that of the pipe. Pipe Schedules range from SCH 5S to XX HVY.
Materials are often called out by their proprietary names (Ex – Haynes 230). However, UNS numbers are the most common and most universal way to specify a material (Ex. UNS S32205).
This designates the pressure-temperature rating of the flange, which is required for all flanges and covered by ASME B16.5. Examples include classes 150#, 300#, 600#, 900#, 1500#, and 2500#.
The flange face is the contact surface and used to seat the sealing gasket. ASME B16.5 and B16.47 define various types of flange facing and surface finishes (RMS). Common Facings include Raised Face (RF), Ring-type Joints (RTJ), Flat Face (FF) Large Male (LM), Large Female (LF), Large Tongue (LT), and Large Groove (LG).
The “standard” or “specification” refers to a group of common requirements written by a professional association such as the American Society of American Engineers (ASME) or the American Society for Testing and Materials (ASTM). These bodies lay out the material requirements for groups of material grades such as A182 (ASTM) / SA182 (ASME) or B564 (ASTM) / SB564 (ASME).

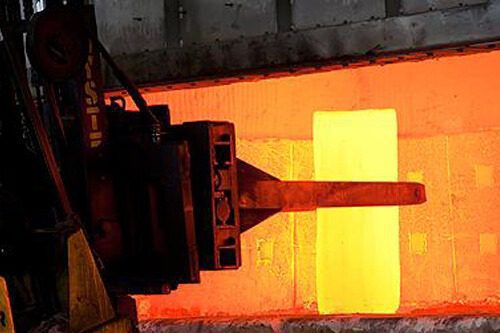

The process of open die forging has long been used to ensure strength, toughness, reliability, and the highest quality in flange manufacturing. Today, with greater demands being made in operating temperatures, loads, and stresses, the reliability of the metal and toughness has become increasingly critical. With the advancements of modern forging and machining, flanges in high grade alloys have excellent tolerance capabilities, superior corrosion resistance, and higher efficiency. Working the material at elevated temperatures achieves recrystallization and grain refinement, which results in greater metallurgical soundness and improved mechanical properties.
As seen in figure two, properly developed grain flow in forgings closely follows the outline of the flange. In contrast, bar stock and plate have unidirectional grain flow. Any changes in shape will cut the flow lines, exposing grain ends, and render the flange more susceptible to fatigue and corrosion. In addition, because forgings are designed to approximate final part shape, we can make better use of material than parts machined from bar stock or plate. Finally, forging eliminates internal gas pockets and voids in the material that could cause unexpected failure under stress or impact and further increases chemical uniformity throughout the flange.
No grain flow
Grain flow broken
by machining
True grain flow
Western Forge & Flange offers rough forgings in a multitude of shapes and sizes for customers to machine into various parts and components outside of flanges. Every rough forging comes with a “machining allowance” or “forging envelope” which refers to the amount of stock left on the surface of the forging to be removed by subsequent machining. Depending on the material grade and size of the forging, the envelope will typically range from ½" to 2" (all over) of excess stock to protect the finishing dimensions provided by the customer. One of the main differences between rough forgings and rough machined forgings is that there is not an exact tolerance. As a manufacturer we cannot determine exactly how much overage there will be on the parts, although we try and get as close as possible to the finished dimensions.

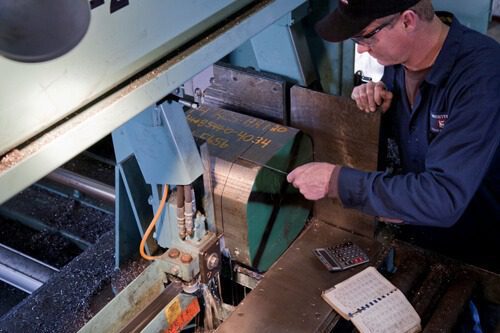

Often, the customer requests an initial machine pass to remove the top layer of flash or scale that forms during the forging process. Taking off the excess material helps create a more compatible surface (most notably the OD) for our customers equipment, and it gives us the ability to drill out the ID of a cylinder that would otherwise be forged solid. This reduces the customers manufacturing and machining time by reducing heavy cuts and simultaneously decreases transportation costs. When a rough machined forging is quoted there is an agreed upon tolerance between the manufacturer and the customer. This helps eliminate any of the unknown excess dimensions as stated above with the rough forgings. Rough Machined tolerances can be as lenient as ½" but can get as close as 1/32" on all dimensions.
